LiDAR

LiDAR technology is a technology that can detect the distance between the left and right and various properties by shining a laser on a target. It has superior spatial resolution than radar,
so it is possible to obtain the characteristics of objects in 3D DATA with high resolution, and it has a high field of view (FOV) to improve object classification.
By using such a lidar, it can be used for various purposes such as object analysis / space measurement / 3D data collection, such as 3D scanning in point cloud format,
autonomous vehicles that do not require a separate camera, and logistics analysis in factories.

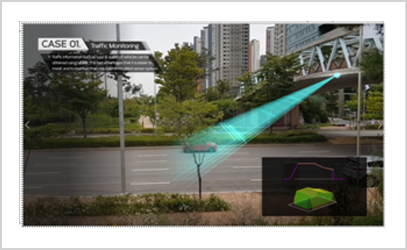

  • Tracking Check

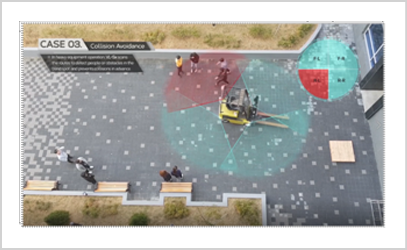

  • Safety Check

  • Smart Factory

Scanning

3D scanning technology and simulation are combined to create a virtual factory that is as realistic as it is.
In order to perform real and virtual simulations such as the digital twin, it is essential to build digital modeling for the environment (factory). Therefore, we build a 3D Digital Factory that reflects scanning data to obtain shape information
in a wide range of space in a short time, and data on production products, equipment, and construction methods.

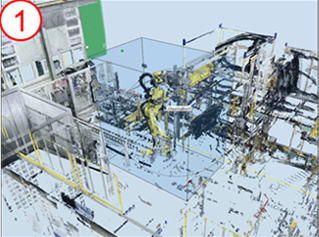

  • Include the Robot in the
    Clipping Box

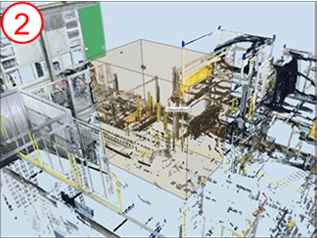

  • Change Clipping Box
    Settings to ‘Hide Interior’

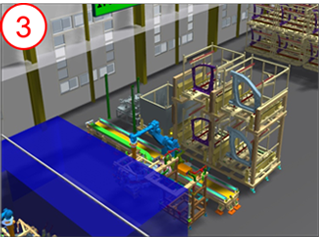

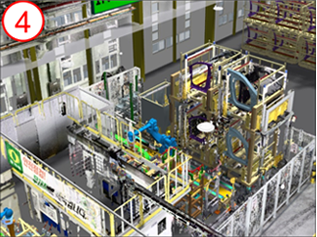

  • Simulation Modeling

  • Insert Scan Data

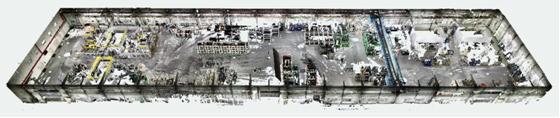

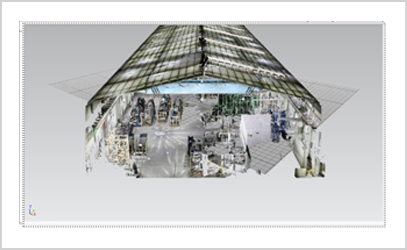

스캔데이터(외부)

  • 스캔데이터(내부)

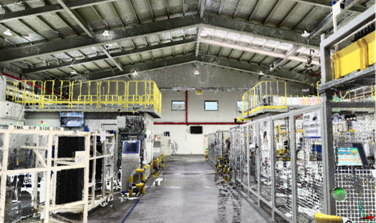

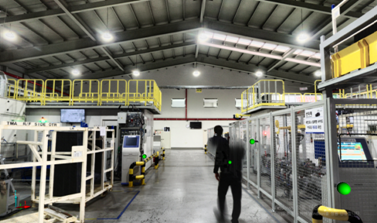

  • 파노라마사진
